Hot Asphalt Belt & Road Work Belts

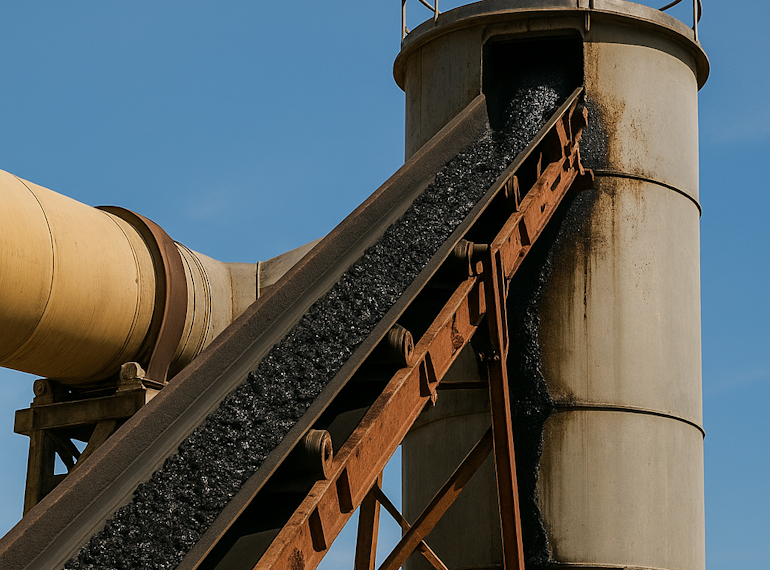

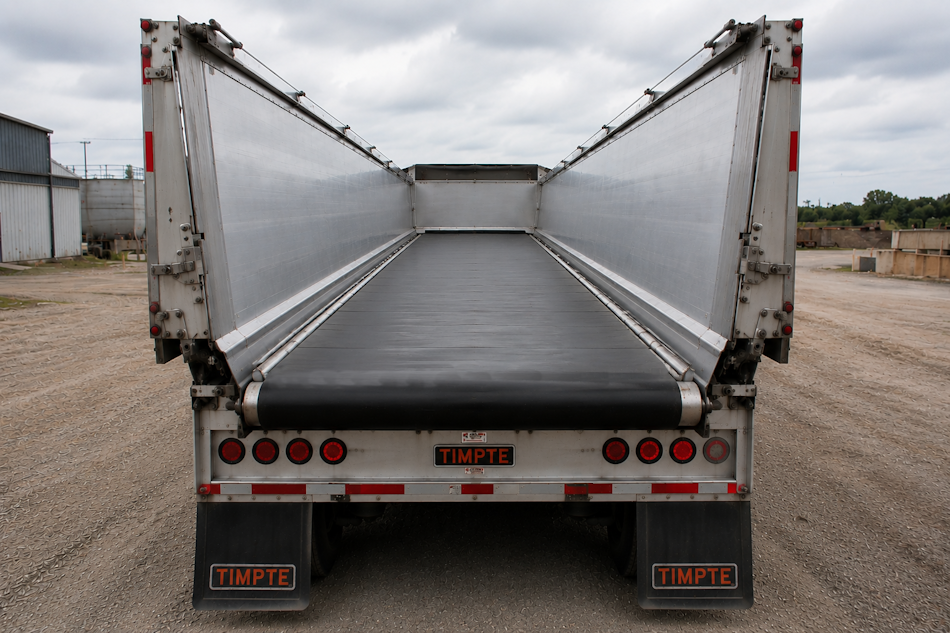

Hot asphalt and durable conveyor belts for hot asphalt plants, road work, milling, reclaim systems, and construction conveyors. Our NBR high-heat and oil-resistant belts are built for hot mix discharge and other demanding high-temperature applications, while a variety of abrasion-resistant constructions support general road work, aggregate handling, and construction materials. Reinforced polyester/nylon fabrics ensure long service life in harsh, abrasive environments, and these belts are also ideal for use as wear parts and live-bottom trailer belts.
3-Ply Hot Asphalt Belt - 5-3734
3 Ply, High Heat, .410″ Thk, NBR Compound Belt, Polyester/Nylon Reinforcement
High temp and oil resistant NBR, abrasion resistant and retains flexibility at higher temperatures. Commonly used as hot asphalt belt for carrying hot asphalt and other applications where oil is a factor including oily grains, oil treated coal and sewage treatment.
- Call 800-558-7080
2-Ply Hot Asphalt Belt - 5-2734
2 Ply, High Heat, .360″ Thk, NBR Compound Belt, Polyester/Nylon Reinforcement
Medium duty 2ply made for a combination of high temp and oil resistance. Abrasion resistant and also flexible at higher temperatures. Popular for conveying hot asphalt and as truck and machine wear parts for deflecting hot asphalt.
- Call 800-558-7080
Rock, Sand and Gravel Conveyor Belt - 5-2731
2 Ply, .360″ Thk, SBR Compound Belt, Polyester/Nylon Reinforcement
SBR Belt with high strength, high abrasion, low stretch, mildew resistance. Great heavy duty belt for many wood conveyor belt applications. Available as 3 PLY wood belt also. Heavy duty firewood, split wood, lumber conveyor belt. Also popular as a Quarry, Sand and Gravel belt for conveying sand, gravel, rock, ore, limestone and other aggregates.
- Call 800-558-7080
Chevron Milling Belts
3 Ply, Various Chevron Impressions, SBR Compound Belt, Polyester/Nylon Reinforcement

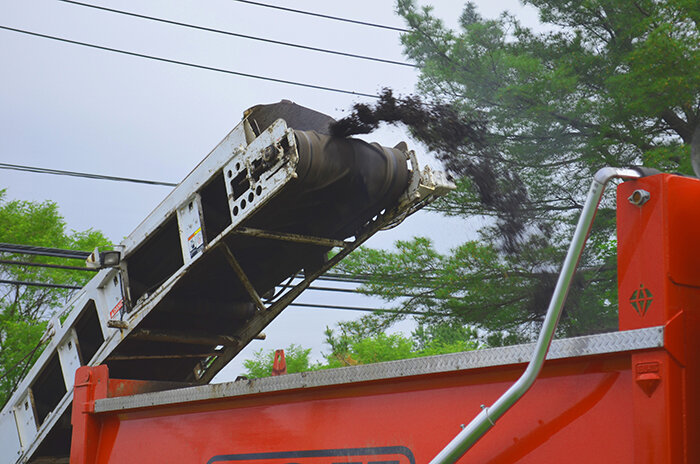

Road milling belts feature intregrally molded cleats in various patterns. Made from grade 1 rubber for tough incline applications and smooth operation. Belts can be supplied open, endless or laced. Available in 5 cleat patterns and specs as shown below. Popular where a durable chevron pattern is needed with integral cleats great for incline. Uses include screening, aggregate, milling, planed asphalt, wood chips and more.
Patterns:
5-6731-C25
Belt Thk: 1.33″ (rec .33″)
Belt Width: 23.25″ – 39.37″
Cleat Width: 20.50″
Cleat Centers: 9.85″
Cleat Height: 1″
3ply 225 1/8 x 1/16
5-6731-D32
Belt Thk: 1.58″ (rec .33″)
Belt Width: 24.75″ – 39.37″
Cleat Width: 22.375″
Cleat Centers: 12.75″
Cleat Height: 1.25″
3ply 225 1/8 x 1/16
5-6731-Y32
Belt Thk: 1.58″ (rec .33″)
Belt Width: 19.75″ – 39.37″
Cleat Width: 16.25″
Cleat Centers: 11.75″
Cleat Height: 1.25″
3ply 225 1/8 x 1/16
5-6731-S25
Belt Thk: 1.33″ (rec .33″)
Belt Width: 31.5″ – 55.11″
Cleat Width: 28.625″
Cleat Centers: 13.25″
Cleat Height: 1″
3ply 225 1/8 x 1/16
5-6831-S25
Belt Thk: 1.41″ (rec .41″)
Belt Width: 32″ – 47.25″
Cleat Width: 28.625″
Cleat Centers: 13.5″
Cleat Height: 1″
3ply 330 3/16 x 1/16
Lacing and Cleats for Hot Asphalt Conveyor Belts
Hot asphalt conveyor belts are available in bulk rolls or fabricated to custom lengths, supplied with or without lacing to meet high-temperature and oil-resistant conveying requirements.
Conveyor belt lacing options include vulcanized endless belts or mechanical styles such as rivet hinge, rivet plate, bolt hinge, bolt plate, Flexco® staple, Alligator® lacing, and more. High-temperature conveyor belt cleats, along with sidewalls and custom profiles, are also available for incline conveying, product control, and other demanding hot asphalt and road construction applications.
Belt Spec Chart
Disclaimer
* The data contained here are approximate values dependent on belt dimensions, application and environment and is for reference only. It is believed to be reliable, but no representations, guarantees or warranties of any kind are made to its accuracy or suitability for any particular purpose. It is recommended that users conduct their own evaluations for the intended application.
