Firewood Conveyor Belt, Wood Chip and Lumber Belts
Replacement firewood conveyor belt and belting for split wood, wood chips, mulch, compost, lumber, brush and other wood products. Most belts offer an abrasion resistant strong top over and a bare bottom cover suited for a slider bed. Chevron and other cleat styles are available for incline conveying applications. These belts are also often well suited in the glass industry, recycling industry and for other demanding applications.

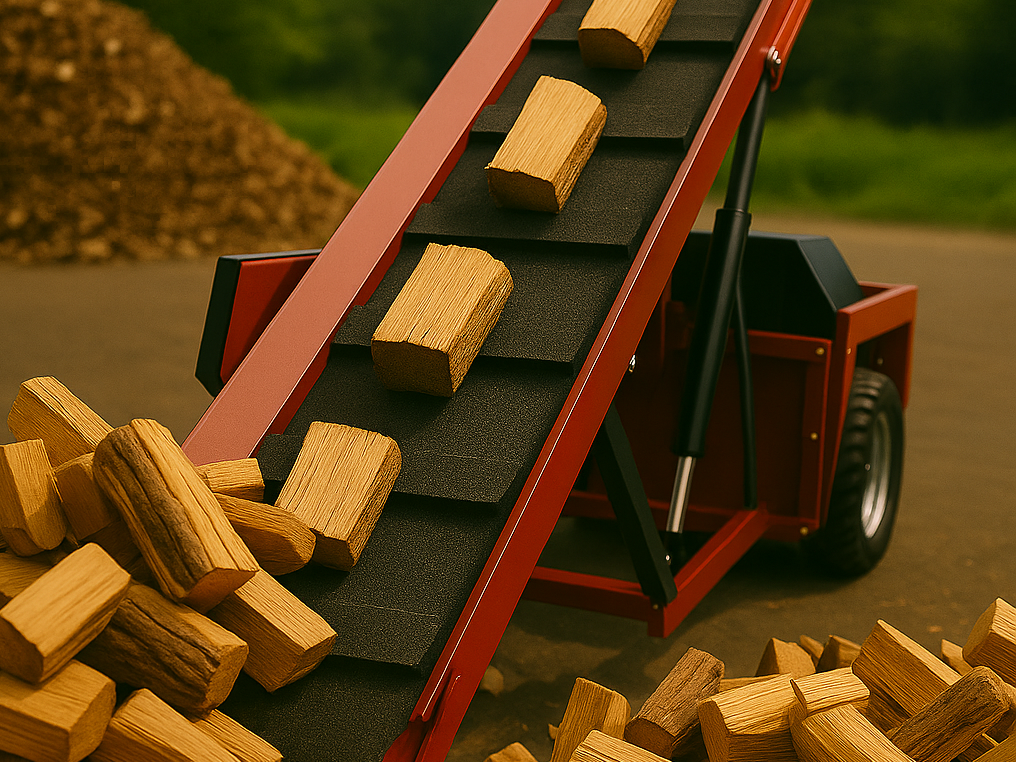

P/N 3-1102 Rough Top Firewood Conveyor Belt
Specs: 2 Ply, Black, 0.250″ Thk, SBR Compound Belt, Polyester Reinforcement, Work Tension 150 lbs PIW, Rec Temp Range -20F to 250F.
Attributes: Features excellent gripping for incline wood conveyors. High strength, low stretch polyester carcass.
Applications: Black rough top incline is one of our most popular incline belts and can handle firewood, split wood and many other packaged goods.
P/N 5-2731 - Wood Conveyor Belts
Specs: 2 PLY, Black, .360” Thk, SBR Compound Belt, Polyester/Nylon Reinforcement, Work Tension 220 lbs PIW, Rec Temp Range -20F to 250F.
Attributes: SBR Belt with high strength, high abrasion, low stretch, mildew resistance. Great heavy duty belt for many wood conveyor belt applications. Available as 3 PLY firewood belt also.
Applications: Heavy duty firewood, split wood, lumber conveyor belt. Also popular as a Quarry, Sand and Gravel belt for conveying sand, gravel, rock, ore, limestone and other aggregates.
P/N 5-1502 Wood Chip Conveyor Belt
Specs: 2 PLY, Black, 0.220″ Thk, MOR Compound Belt, Polyester/Nylon Reinforcement, Work Tension 150 lbs PIW, Rec Temp Range -20F to 200F.
Attributes: Medium duty, moderate oil resistant slider bed belt. This belt has an abrasion resistant top cover and a bare bottom cover.
Applications: Medium duty slider bed belt. Can be used as a wood chip conveyer belt for processing wood chips or for glass industry applications, as a recycling belt or for paper and scrap.
P/N 5-3802 Heavy Duty Wood Conveyor Belt
Specs: 3 PLY, Black, .580″ Thk, MOR Compound Belt, Polyester Reinforcement, Work Tension 600 lbs PIW, Rec Temp Range -20F to 200F.
Attributes: This belt features a heavy duty top cover that is abrasion resistant top and a bare bottom cover. Used on a slider bed and has moderately oil resistance.
Applications: Useful for many application that need a heavy duty belt on a slider bed. A strong carcass makes it popular in the wood industry.
Lacing, Cleats and Custom Belts for Wood Conveyors
Shown here are just some of our more popular Lumber and Firewood Conveyor Belt options. Tide Industrial carries many more belts and belting solutions. Please contact us for additional options and support.
Lumber, Split Wood and Fire wood Conveyor Belts can come in bulk without lacing, recessed or skived, vulcanized endless or with various mechanical belt lacing options to your exact overall size. Lacing types can include Rivet Hinge, Rivet Plate, Bolt Hinge, Bolt Plate, Flexco Staple, Alligator Lacing and Plastic Lacing. We also offer numerous belt cleat options, sidewalls and other profiles for incline conveying, product control and other conveyer belt requirements.
Belt Spec Chart for Wood, Mulch and Firewood Conveying Belt
Type: | Rough Top | Firewood Belt | Wood Chips | Wood |
P/N: | 3-1102 | 5-2731 | 5-1502 | 5-3802 |
Description: | 2 Ply Rubber R/T | 220 3/16 x 1/16 STD | 150 1/8 x Bare MOR | 3 Ply 600 3/8 x Bare MOR |
Color: | Black | Black | Black | Black |
Nominal OAG: | 0.250″ | .360” | 0.220″ | .580″ |
Plies: | 2 PLY | 2 PLY | 2 PLY | 3 PLY |
Fabric: | Polyester | Polyester/Nylon | Polyester/Nylon | Polyester |
Minimum Pulley Dia: | 2″ | 10”-16” (Tension Dep.) | 6″ | 18-30″ |
Top Surface: | Rubber Hemp Impression | 3/16″ Smooth Cover | 1/8″ Smooth Cover | 3/8″ Smooth MOR |
Bottom Surface: | Bare | 1/16″ Smooth Cover | Bare | Bare |
Compound: | SBR | SBR | MOR | MOR |
Work Tension: | 150 lbs PIW | 220 lbs PIW | 150 lbs PIW | 600 lbs PIW |
Elongation: | Less than 2% | Less than 4% | Less than 2% | Less then 2% |
Weight PIW/FT: | .095 lbs. | .200 lbs. | .110 lbs | .313 lbs |
Rec Temp Range: | -20F to 250F | -20F to 250F | -20F to 200F | -20F to 200F |
Joining Method: | Lap Splice; Lacing | Lap Splice/Lacing | Lap Splice; Lacing | Lap Splice; Lacing |
Data Sheet: | 3-1102 | 5-2731 | 5-1502 | 5-3802 |
* The data contained here are approximate values dependent on belt dimensions, application and environment and is for reference only. It is believed to be reliable, but no representations, guarantees or warranties of any kind are made to its accuracy or suitability for any particular purpose. It is recommended that users conduct their own evaluations for the intended application.
