Incline Conveyor Belt
Replacement incline conveyor belts and cleated conveyor belts for incline conveyor systems. Many surface options available including molded chevron, rough top, diamond top, crescent and more. Quality, high strength replacement belting for moving heavy aggregate, packaging, recycling, agriculture, and more. Tide Industrial offers various lacing options and custom fabrication to complete your conveyor belt setup. Belts can be joined using mechanical fasteners including staple, rivet, or bolt lacing or endless spliced for a strong, seamless connection.

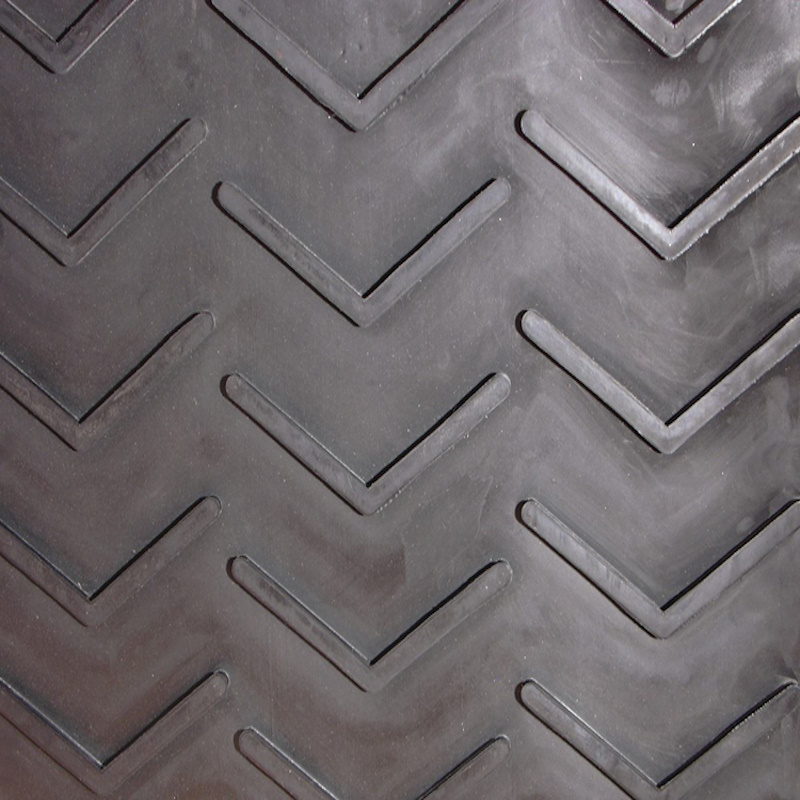

P/N 5-7531 Cleated Incline Belt
Specs: 2 Ply, Black, 0.570″ OAG Thk (Recessed 0.325″) Thk, SBR Compound Belt, Polyester Reinforcement, Work Tension 220 lbs PIW, Rec Temp Range -25F to 250F.
Features: Staggered pattern 1/4″ high x 6″ wide chevron profiles. Reinforced SBR popular for heavy duty incline.
Uses: Medium and heavy duty cleated incline, bulk conveying, gravel, crushed stone and other aggregate.
P/N 5-7532 - Cleated Incline Gravel Belt - MOR
Specs: 2 PLY, Black, OAG 0.570″ (Recessed 0.325″) Thk, MOR Compound Belt, Polyester Reinforcement, Work Tension 220 lbs PIW, Rec Temp Range -20F to 200F.
Features: 1/4″ high x 6″ wide chevron profiles available staggered across belt. Reinforced MOR belt for heavy duty incline with moderate oil resistance.
Uses: Heavy duty cleated incline belt for conveying gravel, crushed stone, bulk grain. Also used on road planners.
P/N 5-7502 Cleated Incline Belt Bare
Specs: 2 Ply, Black, OAG 0.475″ Thk (Recessed 0.225″), MOR Compound Belt, Polyester/Nylon Reinforcement, Work Tension 220 lbs PIW, Rec Temp Range -20F to 200F.
Features: 1/4″ high x 6″ wide chevron profiles staggered across belt. Reinforced belt for heavy duty incline with moderate oil resistance.
Uses: Bare cleated incline belt used in bulk conveying where oil is a concern. Popular in recycling industry, on Diamond Z grinders and for general incline belting.
P/N 5-8731 Continuous Chevron Belt
Specs: 2 Ply, Black, 0.245″ Thk, SBR Compound Belt, Polyester/Nylon Reinforcement, Rec Temp Range -20 to 250F.
Features: 5-8731 features a continuous chevron profile good for conveying bulk material in incline applications. This construction allows for the belt to negotiate small pulleys.
Uses: Sliderbed Suitable, Troughable. Belt used in tubeveyor applications, railcar unloading, agriculture, package handling. Popular where there is free flowing material like grain, corn, or gravel.

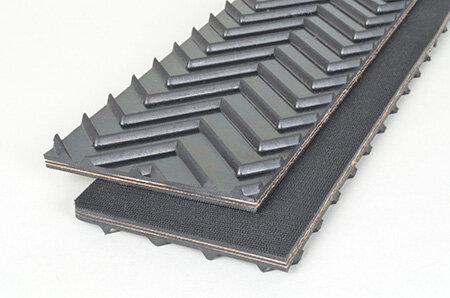

P/N 5-8721 Continuous Chevron Belt
Specs: 2 Ply, Black, 0.265″ (recessed 0.145″) Thk, SBR Compound Belt, Polyester/Nylon Reinforcement, Work Tension 180 lbs PIW, Rec Temp Range -20 to 250F.
Features: 5-8721 features a continuous chevron profile good for conveying bulk material in incline applications. This construction allows for the belt to negotiate small pulleys.
Uses: Belt used in tubeveyor applications, railcar unloading, agriculture, package handling. Popular where there is free flowing material like grain, corn, or gravel. Also used with Street Sweeper cleats. Troughable.

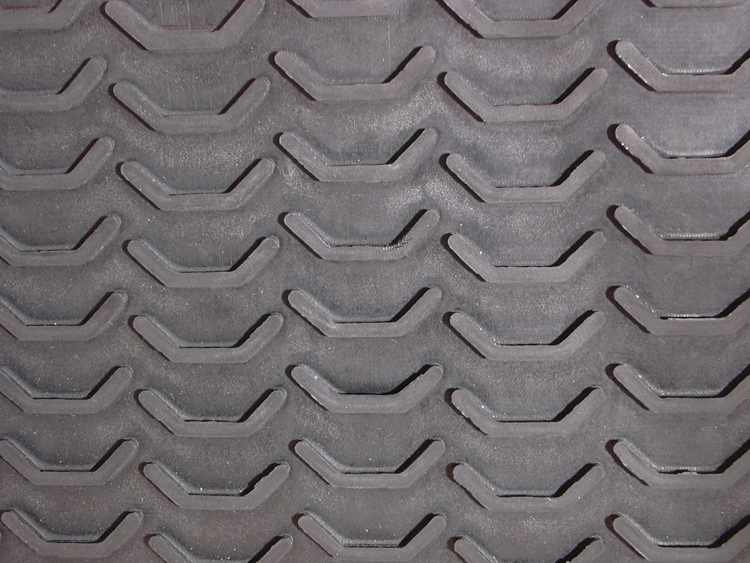

P/N 5-8642 Mini Bucket Cleated Belt
Specs: 2 Ply, Black, 0.290″ +/- .030 Thk, SBR Compound Belt, Polyester Reinforcement, Work Tension 150 lbs PIW, Rec Temp Range -25F to 250F.
Features: Features 3/16″ high by 1-3/4″ wide mini bucket profile in a staggered pattern. Cleats are spaced on 2″ centers across the belt and 1″ centers down. Bottom surface is bare.
Uses: Popular for carrying gravel, dirt, sand and other aggregate. Also used in the recycling industry and as a general purpose cleated belt.
P/N 2-2191 - Tylertop Textured Belt
Specs: 2 Ply, Black, 0.125″ Thk, RAV Compound Belt, Polyester Reinforcement, Work Tension 100 lbs PIW, Rec Temp Range 20F to 180F.
Features: 2-2191 features RAV compound and a low stretch and stable polyester carcass. RAV compound combines economical benefits of PVC with universal benefits of NBR. Top surface has tylerwire impression texture.
Uses: Tylertop belt can be used in many areas as a light duty general purpose belt. The tylerwire impression top surface is great for conveying products up a moderate incline. A thermoplastic belt good for all types of fabrication.

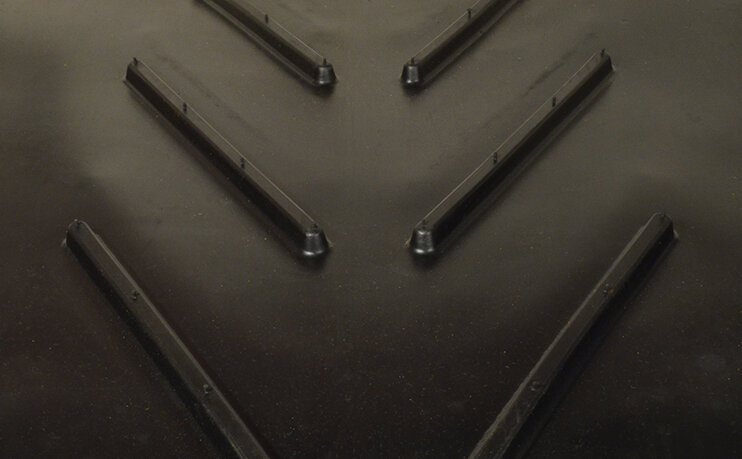

P/N 5-6111 Open Chevron Belt
Specs: 2 Ply, Black, 0.92″ (recessed 0.36″) Thk, SBR Compound Belt, Polyester/Nylon Reinforcement, Work Tension 220 lbs PIW, Rec Temp Range -20F to 250F.
Features: 5-6111 is a green cured chevron belt. This durable belt is available 26″, 28″, 31.5″, 36″, 42″ and 48″ wide.
Uses: Popular belt in screening applications and where a tough, durable chevron pattern is required. Troughable.
P/N 3-1102 Rough Top Incline Belt
Specs: 2 Ply, Black, 0.250″ Thk, SBR Compound Belt, Polyester Reinforcement, Work Tension 150 lbs PIW, Rec Temp Range -20F to 250F.
Features: Features excellent gripping for incline conveyors. High strength, low stretch polyester carcass.
Uses: Black rough top incline is one of our most popular incline belts and can handle many boxed, bagged or packaged goods.
P/N Custom Cleated Incline Belt
Specs: Choose from most standard belt constructions, 1/2/3 ply designs, SBR, MOR, PVC compounds, polyester reinforcements, range of thicknesses, tensions and temperature ranges are available to match your application.
Features: Custom incline belt with cleats vulcanized directly onto our standard belt surfaces. Seamless construction delivers superior strength and durability for incline applications. Choose from T-cleats, scoop cleats, and more—customized by height, spacing, and layout to suit your conveying needs.
Uses:
Ideal for conveying parts, produce, recyclables, packaged goods, firewood and more. Common in manufacturing, packaging, agriculture, recycling, and material handling where controlled incline movement is required.
- Email Us
- Call 800-558-7080
Lacing, Cleats and Custom Belts for Incline Conveyors
Shown here are just some of our more popular Incline Conveyor Belts. Tide Industrial carries many more belts and belting solutions. Please contact us for additional options and support.
Incline Conveyor Belts can come in bulk without lacing, recessed or skived, vulcanized endless or with various mechanical belt lacing options to your exact overall size. Lacing types can include Rivet Hinge, Rivet Plate, Bolt Hinge, Bolt Plate, Flexco Staple, Alligator Lacing and Plastic Lacing. We also offer numerous belt cleat options, sidewalls and other profiles for incline conveying, product control and other conveyer belt requirements.
