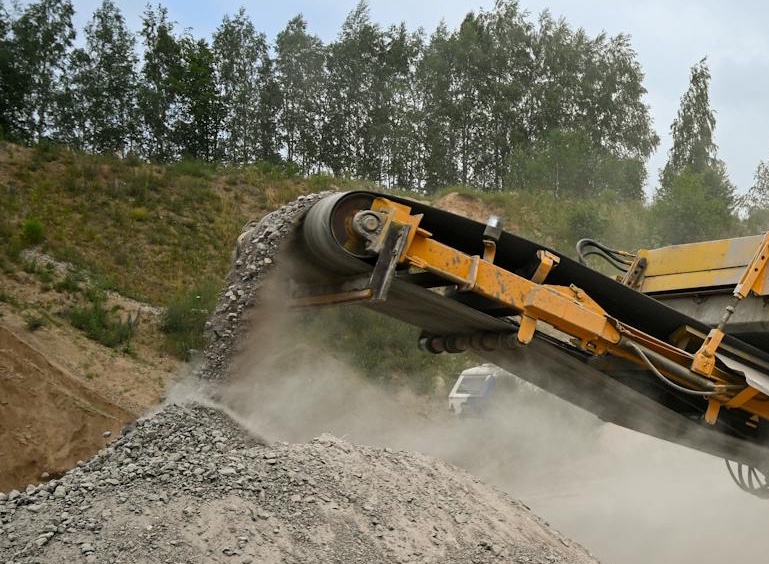

Quarry, Sand, Rock and Gravel Conveyor Belts
Conveyor Belting for Quarries and Mining. Applications including sand conveyor belts, crushed gravel conveyor belts and belts for hard rock, limestone, ore, dirt, stones and other aggregates. Cover layers, bottom layers and reinforcement designed for optimum durability, abrasion, wear and tear resistance required in this industry. Tide Industrial carries conveyor belts for mining and quarry applications. Shown below are some of our many popular options.
P/N 5-2731 - Sand and Gravel Conveyor Belts
Specs: 2 PLY, Black, .360” Thk, SBR Compound Belt, Polyester/Nylon Reinforcement, Work Tension 220 lbs PIW, Rec Temp Range -20F to 250F.
Attributes: SBR Belt with high strength, high abrasion, low stretch, mildew resistance. Great heavy duty belt.
Applications: Heavy duty Quarry, Sand and Gravel belt. Often used as conveyor belting for sand, gravel, rock, ore, limestone and other aggregates.
P/N 5-3731 - HD Sand and Gravel Conveyor Belts
Specs: 3 PLY, Black, 0.410″ Thk, SBR Compound Belt, Polyester/Nylon Reinforcement, Work Tension 330 lbs PIW, Rec Temp Range -20F to 250F.
Attributes: Heavy Duty SBR Belt with smooth top and bottom cover. Thick cover and high strength synthetic fiber reinforcement. Low stretch plus great abrasion, mildew and rot resistance.
Applications: Great for many high abrasion applications and as a heavy industrial belt. Popular for Sand , Gravel and Rock conveying.

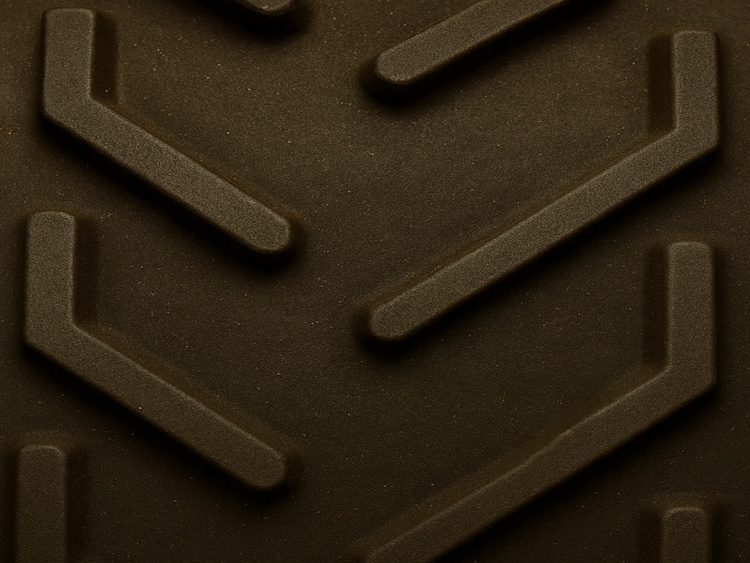

P/N 5-7532 Cleated Incline Gravel Belt
Specs: 2 PLY, Black, OAG 0.570″ (Recessed 0.325″) Thk, MOR Compound Belt, Polyester Reinforcement, Work Tension 220 lbs PIW, Rec Temp Range -20F to 200F.
Attributes: 1/4″ high x 6″ wide chevron profiles available staggered across belt. Reinforced MOR belt for heavy duty incline with moderate oil resistance.
Applications: Heavy duty cleated incline belt for conveying gravel, crushed stone, bulk grain. Also used on road planners.
P/N 5-1531 - General Purpose Belt
Specs: 2 Ply, Black, 0.281″ Thk, SBR Compound Belt, Polyester Reinforcement, Work Tension 150 lbs PIW, Rec Temp Range -20F to 250F.
Attributes: 5-1531 has a heavy cover and smooth top and bottom surface. Long wearing, mildew and rot resistant, low stretch belt material.
Applications: Excellent for moderate abrasive applications. Popular in many industries including sand, gravel and lumber. Great material for many flaps, drapes, deflectors, and other wear parts.
Lacing, Cleats and Custom Belts for Sand and Gravel Belts
Shown here are just some of our more popular Sand and Gravel Conveyor Belts. Tide Industrial carries many more belts and belting solutions. Please contact us for additional options and support.
Sand and Gravel Belts can come in bulk without lacing, recessed or skived, vulcanized endless or with various mechanical belt lacing options to your exact overall size. Lacing types can include Rivet Hinge, Rivet Plate, Bolt Hinge, Bolt Plate, Flexco Staple, Alligator Lacing and Plastic Lacing. We also offer numerous belt cleat options, sidewalls and other profiles for incline conveying, product control and other conveyer belt requirements.
