All Belt Data
Tide Industrial is an Industrial Conveyor Belt Supplier and Custom Manufacturer of replacement conveyor belts and lacing. Tide Industrial specializes in replacement Conveyor Belts for Sand, Gravel and other Aggregate Quarries, Parts and Package Conveying, Hot Asphalt Belts, Recycling Plants, Cleated Incline Belting, Food Industry Belts, Agriculture and Grain Conveyor Belting, Firewood, Lumber Belts and more.
See below for an overall list and data sheets for many common belts. Or click here to view info and conveyor belt data by category.
P/N 1-2002 - White Food Grade Belt
Specs: 2 PLY , White, .090” Thk, NBR Compound Belt, Polyester Reinforcement, Work Tension 70, Rec Temp Range 0-250.
Features: Polyester reinforced white NBR belt is a very popular belt in the food industry. Can be used in many FDA, USDA and agricultural applications. It has low moisture absorption and high resistance to oil and grease.
Uses: A popular food grade belt used in the meat and fish industry and other FDA, USDA and agricultural applications.
P/N 1-2350 - Meat Packing Belt
Specs: 2 PLY, White, 0.250″ Thk, RAV Compound Belt, Polyester Reinforcement, Work Tension 100 lbs. PIW, Rec Temp Range 20F to 180F.
Features: Low stretch, stable belt made from RAV compound which is a blend of PVC and NBR Rubber. FDA grade white belt with a meat cleat profile for incline conveying. Good resistance to various oil, grease and cleaning solutions.
Uses: A popular food grade belt used in meat packing, vegetable processing, powdered products and bakery applications.
P/N 2-1121 - General Purpose PVC Belt
Specs: 1 Ply, Black, 0.135″ +/- .015 Thk, PVC Compound Belt, Interwoven Polyester Reinforcement, Work Tension 120 lbs PIW, Rec Temp Range 0F to 180F.
Features: Popular general purpose belt with interwoven carcass and smooth PVC top cover. Bottom cover is brushed clean to lower the coefficient of friction. High strength, low stretch belt.
Applications: Medium duty general purpose conveyor belt that can be used for parts, in packaging, agriculture, paper, recycling and most industries. Made in the USA.
P/N 2-1151 - Package Conveyor Belts
Specs: 1 Ply, Black, 0.160″ Thk, PVC Compound Belt, Interwoven Polyester Reinforcement, Work Tension 150 lbs PIW, Rec Temp Range 0F to 180F.
Features: Medium duty, general purpose conveyor belt for package conveying and on many other belting systems. Interwoven carcass plus brushed clean bottom surface for lower coefficient of friction. High strength, tear resistance, low stretch.
Uses: Popular as a package conveyor belt and for many medium duty conveyors including recycling, fruits, vegetables and baggage and packaging conveyors.
P/N 2-1200 - Friction Surface Belt
Specs: 1 Ply, Black, 0.185” Thk, PVC Compound Belt, Interwoven Polyester Reinforcement, Work Tension 200 lbs PIW, Rec Temp Range 0F to 180F.
Features: 2-1200 features a tough carcass good for oily and abrasive areas and stamping plants. The belt is very stable and stays in place when diverted or sorted upon.
Uses: Belt used in heavy duty applications such as stamping plants. Also used for package sorting and diverting. Sliderbed suitable.
P/N 2-1352 - Bucket Elevator Belt 350
Specs: 1 Ply, Black, 0.310″ Thk, PVC Compound Belt, Interwoven Polyester Reinforcement, Work Tension 350 lbs PIW, Rec Temp Range 0F to 180F.
Features: 2-1352 features fire retardant, static conductive, oil resistant PVC covers. A tightly woven carcass resists fraying, has low stretch and good lace retention. Not for use as slider bed application.
Uses: Popular as heavy duty bucket elevator belt or heavy duty live roller belt. Thick carcass has good bolt retention. Not for use as slider bed application. Thickness is .310″
P/N 2-1452 - Elevator Bucket Belt
Specs: 1 Ply, Black, 0.340″ +/- .030 Thk, PVC Compound Belt, Interwoven Polyester Reinforcement, Work Tension 450 lbs PIW, Rec Temp Range 0F to 180F.
Features: 2-1452 features fire retardant, static conductive, oil resistant PVC covers. A tightly woven carcass resists fraying, has low stretch and good lace retention. Not for use as slider bed application.
Uses: Popular as heavy duty bucket elevator belt or heavy duty live roller belt. Thick carcass has good bolt retention. Not for use as slider bed application. Thickness is .340″
P/N 2-1511 - Processing Belt
Specs: 2 Ply, Green, 0.085″ Thk, PVC Compound Belt, Polyester Reinforcement, Work Tension 100 lbs./PIW, Rec Temp Range 20 to 180F.
Features: 2-1511 features a heavy duty lightweight monofilament fabric for a cross rigid, high strength, low stretch flexible belt. This belt is oil resistant and anti-static.
Uses: Stable belt used for transporter bands, textile processing, paper, packaging inspection lines, low HP conveyors and as a general checkout counter belt. Sliderbed suitable.
2-2121X - General Purpose Food Belt
Specs: 1 Ply, White, 0.135″ +/- .020 Thk, PVC Compound Belt, Interwoven Polyester Reinforcement, Work Tension 120 lbs PIW, Rec Temp Range 0F to 180F.
Features: Features a smooth PVC cover, tightly interwoven polyester carcass, lies flat and resists stretch. Belt offers vegetable oil resistance but not animal oil resistance.
Uses: 1200 COS Standard belt is a general purpose food handling belt. Not recommended for chicken or meat processing. Popular belt for specialty fabrication.
P/N 2-2125 - White Rough Top Belt
Specs: 1 Ply, White, 0.31” +/- 0.03” (recessed 0.12″) Thk, PVC Compound Belt, Interwoven Polyester Reinforcement, Work Tension 100 lbs./PIW, Rec Temp Range 0 to 180F.
Features: 2-2125 features an interwoven carcass with hemp impression rough top cover. Rough top impression must be recessed to use lacing.
Uses: Sliderbed Suitable. PVC Rough Top-HI can be used as a general purpose moderate incline belt.
P/N 2-2191 - Tylertop Textured Belt
Specs: 2 Ply, Black, 0.125″ Thk, RAV Compound Belt, Polyester Reinforcement, Work Tension 100 lbs PIW, Rec Temp Range 20F to 180F.
Features: 2-2191 features RAV compound and a low stretch and stable polyester carcass. RAV compound combines economical benefits of PVC with universal benefits of NBR. Top surface has tylerwire impression texture.
Uses: Tylertop belt can be used in many areas as a light duty general purpose belt. The tylerwire impression top surface is great for conveying products up a moderate incline. A thermoplastic belt good for all types of fabrication.
P/N 3-1102 - Rough Top Belt
Specs: 2 Ply, Black, 0.250″ Thk, SBR Compound Belt, Polyester Reinforcement, Work Tension 150 lbs PIW, Rec Temp Range -20F to 250F.
Features: Features excellent gripping for incline conveyors. High strength, low stretch polyester carcass.
Uses: Black rough top incline is one of our most popular incline belts and can handle many boxed, bagged or packaged goods.
P/N 3-1102 - Rough Top Firewood Conveyor Belt
Specs: 2 Ply, Black, 0.250″ Thk, SBR Compound Belt, Polyester Reinforcement, Work Tension 150 lbs PIW, Rec Temp Range -20F to 250F.
Features: Features excellent gripping for incline wood conveyors. High strength, low stretch polyester carcass.
Uses: Black rough top incline is one of our most popular incline belts and can handle firewood, split wood and many other packaged goods.
P/N 3-1406 - 3 Ply Tan Rough Top
Specs: 3 Ply, Tan, 0.265” +/- 0.025” (recessed 0.12″) Thk, SBR Compound Belt, Polyester Reinforcement, Work Tension 200 lbs./PIW, Rec Temp Range -20 to 250F.
Features: 3-1406 has a high coefficients of friction for steep incline. Belt cushions the conveyed product with a non-marking surface. Rough Top impression must be recessed to use the recommended lacing.
Uses: Non-Marking, Troughable, Sliderbed Suitable. 3 Ply Tan Rough Top is popular where a extra grip or non-marking quality is needed on an incline.
P/N 3-1514 - Green Roughtop Belt
Specs: 2 Ply, Green, 0.22″ +/- 0.01″ (recessed 0.16″) Thk, PVC Compound Belt, Monofiliment/Polyester Reinforcement, Work Tension 51 lbs./PIW, Rec Temp Range -14 to 158F.
Features: 3-1514 has an abrasion resistant rough top impression for incline conveying. This belt is anti-static with a sine wave rough top pattern.
Uses: Sliderbed Suitable, Cross Rigid. Typically used in distribution centers, farming, furniture manufacturing, package handling, plastic manufacturing, and the wood industry.
P/N 3-1560 - Package Sorting Belt
Specs: 2 Ply, Black, 0.09″ Thk, PVC Compound Belt, Polyester Reinforcement, Work Tension 86 lbs PIW, Rec Temp Range 14F to 140F.
Features: 3-1560 features a soft compound with molded grooves that self clean when going around pulleys. This belt has anti-static and flame retardant properties and was developed for low noise.
Uses: Recommended where a high grip incline belt is needed like conveying totes, as an acceleration belt, decline belt, gapping belt, incline belt, induction belt, line belt and sorting belt. Sliderbed Suitable.
P/N 3-1600 - Sticky Top Belt
Specs: 2 Ply, Gray, 0.145” Thk, PVC Compound Belt, Monofilament Reinforcement, Work Tension 100 lbs PIW, Rec Temp Range 20F to 180F.
Features: 3-1600 belt features a low durometer PVC top cover providing a “sticky” carrying surface. This belt has a 2 ply monofilament carcass and can travel at high speeds with low noise. It is also known as a ‘Sticky Top’ belt, is cross rigid, and non-marking.
Uses: Popular belt used in package handling, manufacturing, post office applications. It is a high traction belt for moderate incline. Powerturn suitable, sliderbed suitable.
P/N 3-3512 - Crescent Top Belt
Specs: 1 Ply, Black, 0.240″ OAG, 0.140″ Rec OAG Thk, PVC Compound Belt, Interwoven Polyester Reinforcement, Work Tension 120 lbs PIW, Rec Temp Range 0F to 180F.
Features: Features an interwoven carcass with a 1/8″ high half moon crescent impression. Belt has a brushed bottom for a low coefficient of friction and oil resistant PVC compound. Also available in white and in heavier gauges.
Uses: Crescent Top Belt is popular in the agricultural industry for conveying various material and in the post office for moving small packages.
P/N 3-4102 - Diamond Incline Belt
Specs: 2 Ply, Black, 0.33” (recessed 0.15″) Thk, SBR Compound Belt, Polyester Reinforcement, Work Tension 120 lbs PIW, Rec Temp Range -20F to 250F.
Features: 3-4102 is a high performance belt used for steep inclines. This belt offers a very high coefficient of friction. Rough top impression must be recessed to use lacing.
Uses: 2 Ply Black Diamond Top belt used in boxed, bagged and packaged goods applications. Also popular in the airline industry and in post offices. Sliderbed suitable.
P/N 3-4402G - Tan Gum Diamond Incline Belt
Specs: 2 Ply, Tan, 0.313” (recessed 0.15″) Thk, SBR Compound Belt, Polyester Reinforcement, Work Tension 150 lbs PIW, Rec Temp Range -25F to 250F.
Features: High performance belt normally used for demanding steep inclines. This belt has a very high coefficient of friction due to the gum rubber. Rough top impression must be recessed to use lacing. This belt is also non-marking.
Uses: 2 Ply Tan Gum Diamond Top used for boxed, bagged and packaged goods applications. Popular belt also in the airline industry and in the post office. Sliderbed suitable.
P/N 4-1111 - Vegetable and Potato Conveyor Belts
Specs: 2 PLY, Black, 0.160″ Thk, PVC Compound Belt, Polyester Reinforcement, Work Tension 150 lbs PIW, Rec Temp Range -20F to 180F.
Features: Smooth satin finish both sides. Resistant to oil, static and stretch.
Uses: Can be used as a potato conveyer belt to convey potatoes. Also for fertilizers, fruits, vegetables and wood products.
P/N 4-3005 - Grain Conveyor Belts
Specs: 5 PLY, Tan, 0.270″ Thk, SBR Compound Belt, Cotton Reinforcement, Work Tension 175 lbs PIW, Rec Temp Range -40F to 250F.
Features: This belt is made with 5 plies of cotton bonded together with heavy SBR skims. Tan rubber cover help make this belt non-marking.
Uses: Used in the feed and grain industry. General purpose conveying and light duty elevators. Also can be used in heavy power transmission.
P/N 4-3006 - Grain Conveyor Belts
Specs: 6 PLY, Tan, 0.315″ Thk, SBR Compound Belt, Cotton Reinforcement, Work Tension 210 lbs PIW, Rec Temp Range -20F to 250F.
Features: Features 6 plies of cotton bonded together with heavy SBR skims. Tan rubber cover helps make this belt non-marking.
Uses: Popular in agriculture, in the feed and grain industry, as a light duty bucket elevator and for general conveying. Also used in heavy duty power transmission applications.
P/N 4-4002 - General Purpose Slider Belt
Specs: 2 Ply, Black, 0.125″ Thk, SBR Compound Belt, Polyester Reinforcement, Work Tension 150 lbs PIW, Rec Temp Range -20F to 250F.
Features: Bare slider bottom belt featuring an abrasion resistant cover. A good slider belt option in various industries as a light duty general purpose belt.
Uses: Popular in many agricultural applications. Also used in the airline industry, for conveying packaged goods and as a belt for rubber fabrication.
moving.
P/N 4-4003 - Checkout Counter Belt
Specs: 2 Ply, Black, 0.075″ +/- 0.015″ Thk, PVC Compound Belt, Polyester x Monofilament Reinforcement, Work Tension 60 lbs./PIW, Rec Temp Range 20 to 180F.
Features: 4-4003 checkout belt features a ply of monofilament and a balancing ply resulting in a non-curling, stable, and positive tracking belt. This belt is also anti-static, cross rigid, and low noise
Uses: Our most popular checkout counter belt. It is also used to convey small parts, treadmills and packaging machines. Sliderbed suitable.
P/N 4-4004 - Package Slider Belts
Specs: 4 Ply, Tan, 0.120″ Thk, NBR Compound Belt, Cotton/Polyester Reinforcement, Work Tension 50 lbs PIW, Rec Temp Range 0F to 250F.
Features: Conveyor belt with a hard abrasion resistant nylon top surface. Very low friction designed for conveying where packaging and product needs to stay or slide as the belt moves.
Uses: Slider Top belt can be used in many packaging, diverting and sliding operations where product must slide or collect on the belt while it is moving.
P/N 4-4700 - Urethane Recycling Plant Conveyor Belts
Specs: 1 Ply, Red, 0.187″ Thk, Urethane Compound Belt, Interwoven Polyester Reinforcement, Work Tension 120 lbs PIW, Rec Temp Range 0F to 185F.
Features: Tough, abrasive, red urethane belt. Interwoven polyester reinforcement with friction surface bottom. Urethane top resists cutting and abrasion from metal, glass and abrasives.
Uses: One of our toughest and most abrasion and cut resistant belts useful for metal, glass, aluminum and other abrasive materials. Good fir metal stamping, recycling, die cutting and other tough applications.
P/N 5-1111 - General Purpose Rubber Conveyor Belt
Specs: 2 Ply, Black, 0.150″ Thk, SBR Compound Belt, Polyester Reinforcement, Work Tension 150 lbs PIW, Rec Temp Range -20F to 250F.
Features: 5-1111 is popular in the agricultural industry and for light duty bulk conveying or live roller applications. Also a good rubber fabrication belt.
Uses: Often used for potatoes and other agriculture. Also used for live roller and many general conveying applications.
P/N 5-1502 - Wood Chip Conveyor Belt
Specs: 2 PLY, Black, 0.220″ Thk, MOR Compound Belt, Polyester/Nylon Reinforcement, Work Tension 150 lbs PIW, Rec Temp Range -20F to 200F.
Features: Medium duty, moderate oil resistant slider bed belt. This belt has an abrasion resistant top cover and a bare bottom cover.
Uses: Medium duty slider bed belt. Can be used as a wood chip conveyer belt for processing wood chips or for glass industry applications, as a recycling belt or for paper and scrap.
P/N 5-1511 - General Purpose Belt
Specs: 2 Ply, Black, 0.236″ Thk, SBR Compound Belt, Polyester Reinforcement, Work Tension 150 lbs PIW, Rec Temp Range -20F to 200F.
Features: 5-1511 features a smooth top and bottom surface and a strong cover. High strength synthetic fabric for longer wear. Low stretch belt.
Uses: Used for moderately abrasive applications. Popular in the sand, gravel and lumber industries. Also great for many flaps, drapes, deflectors, and other wear parts.
P/N 5-1531 - General Purpose Belt
Specs: 2 Ply, Black, 0.281″ Thk, SBR Compound Belt, Polyester Reinforcement, Work Tension 150 lbs PIW, Rec Temp Range -20F to 250F.
Features: 5-1531 has a heavy cover and smooth top and bottom surface. Long wearing, mildew and rot resistant, low stretch belt material.
Uses: Excellent for moderate abrasive applications. Popular in many industries including sand, gravel and lumber. Great material for many flaps, drapes, deflectors, and other wear parts.
P/N 5-2335 - Grain Belt
Specs: 2 Ply, Black, 0.215″ Thk, MSHA/MOR/SC Compound Compound Belt, Polyester/Nylon Reinforcement, Work Tension 220 lbs PIW, Rec Temp Range 0F to 250F.
Features: Static conductive, moderately oil resistant, fire retardant and MSHA approved for grain elevators. 5-2335 belt is not approved for use in underground applications.
Uses: Excellent belt for bucket elevator applications. Can be punched in a wide variety of patterns for bucket configurations. A good belt for conveying oily grains or wood chips.

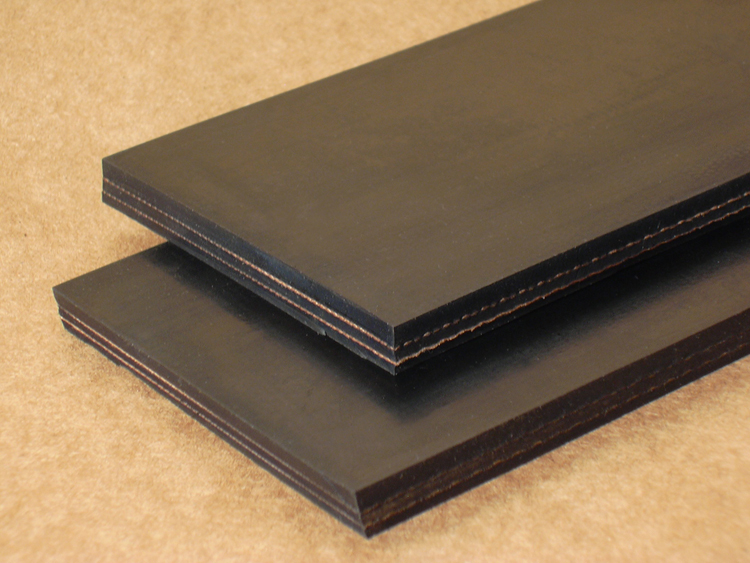

P/N 5-2531 - Aggregate Conveyor Belts
Specs: 2 Ply, Black, 0.300″ Thk, SBR Compound Belt, Polyester/Nylon Reinforcement, Work Tension 220 lbs PIW, Rec Temp Range -20F to 250F.
Features: Features a smooth top and bottom surface with heavy cover and high strength synthetic fabric. Long wearing, low stretch belt. Also mildew and rot resistant.
Uses: Excellent for high abrasion applications. Popular in sand, gravel and rock industries and other heavy industrial applications.

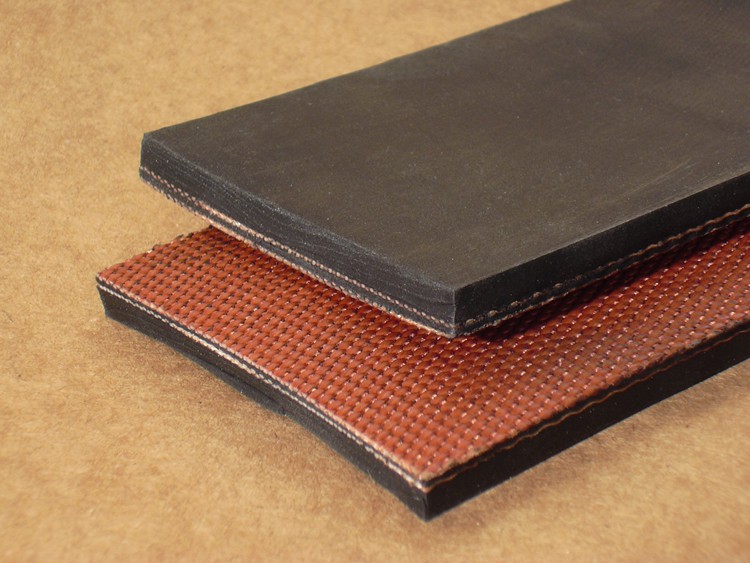

P/N 5-2702 - Recycling Plant Conveyor Belts
Specs: 2 Ply, Black, 0.300″ Thk, MOR Compound Belt, Polyester/Nylon Reinforcement, Work Tension 220 lbs PIW, Rec Temp Range -20F to 200F.
Features: Heavy duty, abrasion resistant top cover and bare bottom cover. Can be used on a slider bed and has moderate oil resistance.
Uses: Bare MOR can be used in applications requiring a heavy duty belt on a slider bed. Popular belt for recycling plant applications and the glass industry.

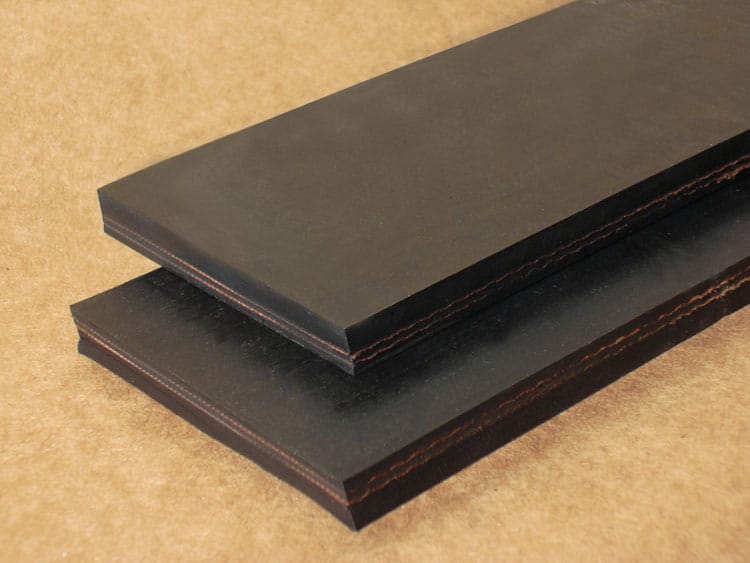

P/N 5-2731 - Wood / Gravel Conveyor Belts
Specs: 2 PLY, Black, .360” Thk, SBR Compound Belt, Polyester/Nylon Reinforcement, Work Tension 220 lbs PIW, Rec Temp Range -20F to 250F.
Features: SBR Belt with high strength, high abrasion, low stretch, mildew resistance. Great heavy duty belt for many conveyor belt applications. Also available in thicker 3 PLY belt.
Uses: Heavy duty quarry conveyor belt for sand, gravel, rock, ore, limestone and other aggregates. Also used as a heavy duty firewood, split wood, lumber conveyor belt. Popular general purpose belting material for snow plow deflectors, strips, skirting
and wear parts.
P/N 5-2734 - 2PLY Hot Asphalt Belting
Specs: 2 PLY, Black, 0.360″ Thk, NBR Compound Belt, Polyester/Nylon Reinforcement, Work Tension 220 lbs PIW, Rec Temp Range -20F to 350F.
Features: Medium duty 2ply made for a combination of high temp and oil resistance. Abrasion resistant and also flexible at higher temperatures.
Uses: Popular for conveying hot asphalt and as truck and machine wear parts for deflecting hot asphalt.

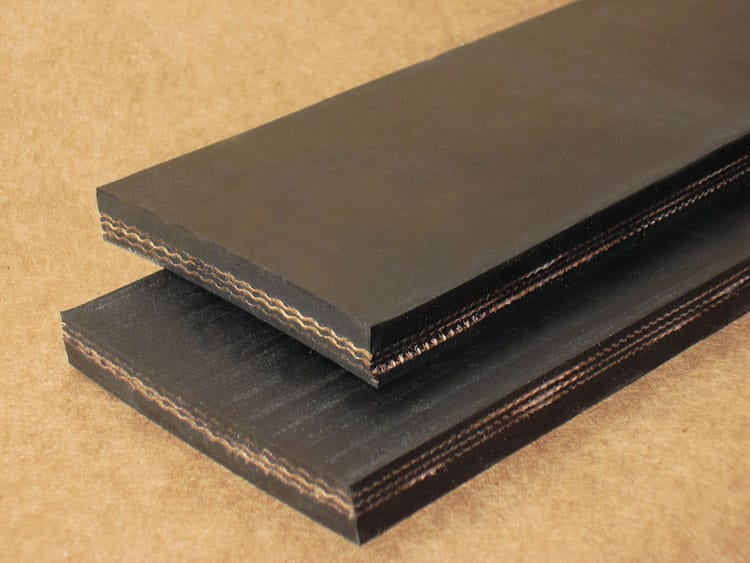

P/N 5-3731 - HD Sand and Gravel Conveyor Belts
Specs: 3 PLY, Black, 0.410″ Thk, SBR Compound Belt, Polyester/Nylon Reinforcement, Work Tension 330 lbs PIW, Rec Temp Range -20F to 250F.
Features: Heavy Duty SBR Belt with smooth top and bottom cover. Thick cover and high strength synthetic fiber reinforcement. Low stretch plus great abrasion, mildew and rot resistance.
Uses: Great for many high abrasion applications and as a heavy industrial belt. Popular for Sand , Gravel and Rock conveying.
P/N 5-3734 - 3PLY Hot Asphalt Belt
Specs: 3 Ply, Black, 0.410″ Thk, NBR Compound Belt, Polyester/Nylon Reinforcement, Work Tension 330 lbs PIW, Rec Temp Range -20F to 350F.
Features: High temp and oil resistant NBR, abrasion resistant and retains flexibility at higher temperatures.
Uses: Commonly used as hot asphalt belt for carrying hot asphalt and other applications where oil is a factor including oily grains, oil treated coal and sewage treatment.
P/N 5-3802 - Heavy Duty Wood Conveyor Belt
Specs: 3 PLY, Black, .580″ Thk, MOR Compound Belt, Polyester Reinforcement, Work Tension 600 lbs PIW, Rec Temp Range -20F to 200F.
Features: This belt features a heavy duty top cover that is abrasion resistant top and a bare bottom cover. Used on a slider bed and has moderately oil resistance.
Uses: Useful for many application that need a heavy duty belt on a slider bed. A strong carcass makes it popular in the wood industry.
P/N 5-3831 - Heavy Duty Rubber 3-Ply Belt
Specs: 3 Ply, Black, 0.480″ Thk, SBR Compound Belt, Polyester/Nylon Reinforcement, Work Tension 330 lbs PIW, Rec Temp Range -20F to 250F.
Features: Heavy duty 3 PLY aggregate belt. Smooth top and bottom surface. Heavy cover and high strength synthetic fabric provide a long wearing, mildew and rot resistant, low stretch belt.
Uses: Excellent for heavy duty abrasive applications. Used to convey gravel, rock, ore, limestone and many other industrial materials. Also used as an elevator belt.

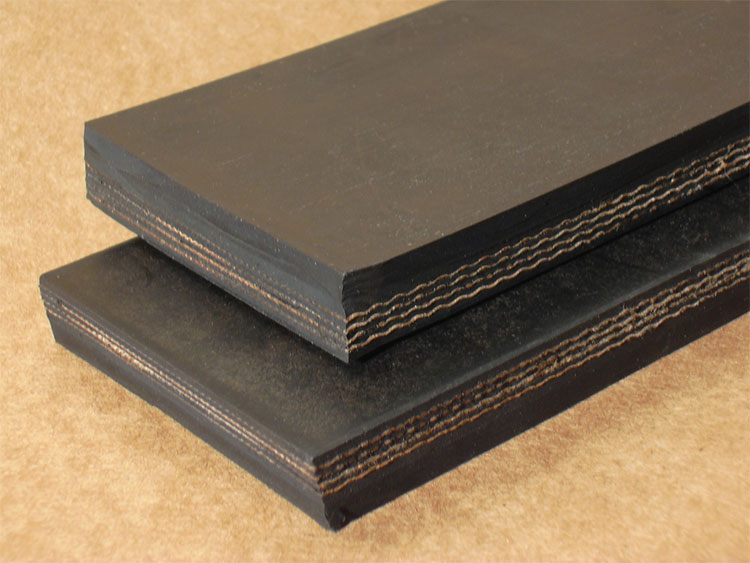

P/N 5-4831 - Heavy Duty Rubber 4-Ply Belt
Specs: 4 Ply, Black, 0.500″ Thk, SBR Compound Belt, Polyester/Nylon Reinforcement, Work Tension 440 lbs PIW, Rec Temp Range -20F to 250F.
Features: Heavy duty 4 PLY aggregate belt. Smooth top and bottom surface. Heavy cover and high strength synthetic fabric provide a long wearing, mildew and rot resistant, low stretch belt.
Uses: Heavy duty 4-ply conveyor belt for abrasive applications. Used to convey gravel, rock, ore, limestone and many other industrial materials. Also used as an elevator belt.
P/N 5-6111 Open Chevron Belt
Specs: 2 Ply, Black, 0.92″ (recessed 0.36″) Thk, SBR Compound Belt, Polyester/Nylon Reinforcement, Work Tension 220 lbs PIW, Rec Temp Range -20F to 250F.
Features: 5-6111 is a green cured chevron belt. This durable belt is available 26″, 28″, 31.5″, 36″, 42″ and 48″ wide.
Uses: Popular belt in screening applications and where a tough, durable chevron pattern is required. Troughable.
P/N 5-7502 Cleated Incline Belt Bare
Specs: 2 Ply, Black, OAG 0.475″ Thk (Recessed 0.225″), MOR Compound Belt, Polyester/Nylon Reinforcement, Work Tension 220 lbs PIW, Rec Temp Range -20F to 200F.
Features: 1/4″ high x 6″ wide chevron profiles staggered across belt. Reinforced belt for heavy duty incline with moderate oil resistance.
Uses: Bare cleated incline belt used in bulk conveying where oil is a concern. Popular in recycling industry, on Diamond Z grinders and for general incline belting.
P/N 5-7531 - Cleated Incline Belt
Specs: 2 Ply, Black, 0.570″ OAG Thk (Recessed 0.325″) Thk, SBR Compound Belt, Polyester Reinforcement, Work Tension 220 lbs PIW, Rec Temp Range -25F to 250F.
Features: Reinforced SBR Belt with raised chevron style profile for incline conveying. Staggered pattern 1/4″ high x 6″ wide chevron profiles. Also available in 3 ply and higher oil resistant grades.
Uses: Medium and heavy duty cleated incline. Popular incline belt for bulk conveying gravel, crushed stone, waste, recycling and other heavy duty product and aggregate.
P/N 5-7532 - Cleated Incline Gravel Belt - MOR
Specs: 2 PLY, Black, OAG 0.570″ (Recessed 0.325″) Thk, MOR Compound Belt, Polyester Reinforcement, Work Tension 220 lbs PIW, Rec Temp Range -20F to 200F.
Features: 1/4″ high x 6″ wide chevron profiles available staggered across belt. Reinforced MOR belt for heavy duty incline with moderate oil resistance.
Uses: Heavy duty cleated incline belt for conveying gravel, crushed stone, bulk grain. Also used on road planners.
P/N 5-8642 - Mini Bucket Cleated Belt
Specs: 2 Ply, Black, 0.290″ +/- .030 Thk, SBR Compound Belt, Polyester Reinforcement, Work Tension 150 lbs PIW, Rec Temp Range -25F to 250F.
Features: Features 3/16″ high by 1-3/4″ wide mini bucket profile in a staggered pattern. Cleats are spaced on 2″ centers across the belt and 1″ centers down. Bottom surface is bare.
Uses: Popular for carrying gravel, dirt, sand and other aggregate. Also used in the recycling industry and as a general purpose cleated belt.
P/N 5-8721 Continuous Chevron Belt
Specs: 2 Ply, Black, 0.265″ (recessed 0.145″) Thk, SBR Compound Belt, Polyester/Nylon Reinforcement, Work Tension 180 lbs PIW, Rec Temp Range -20 to 250F.
Features: 5-8721 features a continuous chevron profile good for conveying bulk material in incline applications. This construction allows for the belt to negotiate small pulleys.
Uses: Belt used in tubeveyor applications, railcar unloading, agriculture, package handling. Popular where there is free flowing material like grain, corn, or gravel. Also used with Street Sweeper cleats. Troughable.
P/N 5-8731 Continuous Chevron Belt
Specs: 2 Ply, Black, 0.245″ Thk, SBR Compound Belt, Polyester/Nylon Reinforcement, Rec Temp Range -20 to 250F.
Features: 5-8731 features a continuous chevron profile good for conveying bulk material in incline applications. This construction allows for the belt to negotiate small pulleys.
Uses: Sliderbed Suitable, Troughable. Belt used in tubeveyor applications, railcar unloading, agriculture, package handling. Popular where there is free flowing material like grain, corn, or gravel.
P/N 6-3050 - Screen Printing Belts
Specs: 1 Ply, Tan, 0.040″ Thk, Teflon/Fiberglass Compound Belt, Fiberglass Reinforcement, Work Tension 370 lbs / in, Rec Temp Range -200F to 550F.
Attributes: Teflon/fiberglass is excellent for high heat resistance conveying. Product is non-adhesive. Typically alligator laced with sewn and sealed edges.
Applications: This belting is commonly used in Screen Printing, Food Processing, Packaging, Bag Manufacture and other high heat applications.
P/N 6-5000 - Hi Heat Silicone Belting
Specs: 1 Ply, Orange, 0.020″ Thk, Silicone Compound Belt, Fiberglass Reinforcement, Work Tension 50 lbs PIW, Rec Temp Range Up to 500F.
Attributes: Features a fiberglass carcass impregnated with silicone. Hi heat belt able to withstand up to 500F in many applications.
Applications: Red Silicone belting popular for shrink wrap tunnels, drying lines, ovens, screen printing and other application with extreme heat.
